Liftboy 5
COMPACT WHEELCHAIR PLATFORM LIFT UP TO 1.3 METRES
Liftboy 5 is a compact wheelchair platform lift for height differences of up to 1,300 mm. Two electric actuators drive a double scissor mechanism, and an automatic ramp lets a wheelchair roll on and off at ground level. It is built by Lehner Lifttechnik in Austria and is now available in the UAE through Flex Access, for villa entrances, raised ground floors, stages and podiums where a ramp would take too much space.
House
Business
Technical Specifications
Key Advantages
- Electric double scissor drive with two actuators
- Folds down to 125 mm, with or without a pit
- Automatic access ramp as standard
- Wireless call stations at each landing
- Any RAL colour to match the building
Typical Applications
What Is Liftboy 5?
It is a vertical platform lift for wheelchair users who need to cross a height difference of up to 1,300 mm. The platform sits on a double scissor mechanism powered by two 24 V actuators. Folded down, it is only 125 mm high, so it can stand on a finished floor without a pit. An automatic ramp opens at the lower level and closes before the platform rises.
The lift is manufactured by Lehner Lifttechnik GmbH in Austria and designed to the guidelines of European Standard EN 81-41 for platform lifts. It is now available in the UAE. Flex Access supplies, installs and maintains it across Abu Dhabi, Dubai and the other emirates.
Why Choose This Lift
Low entry height

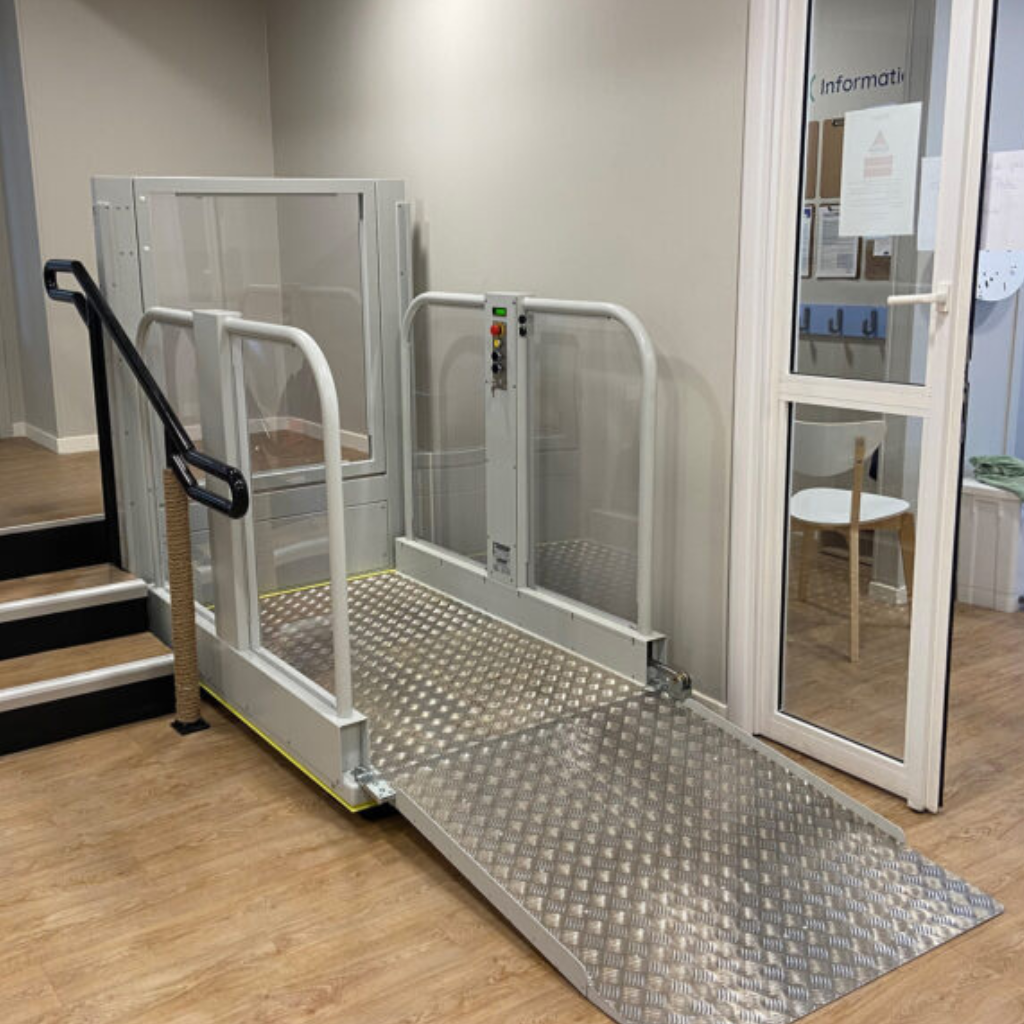

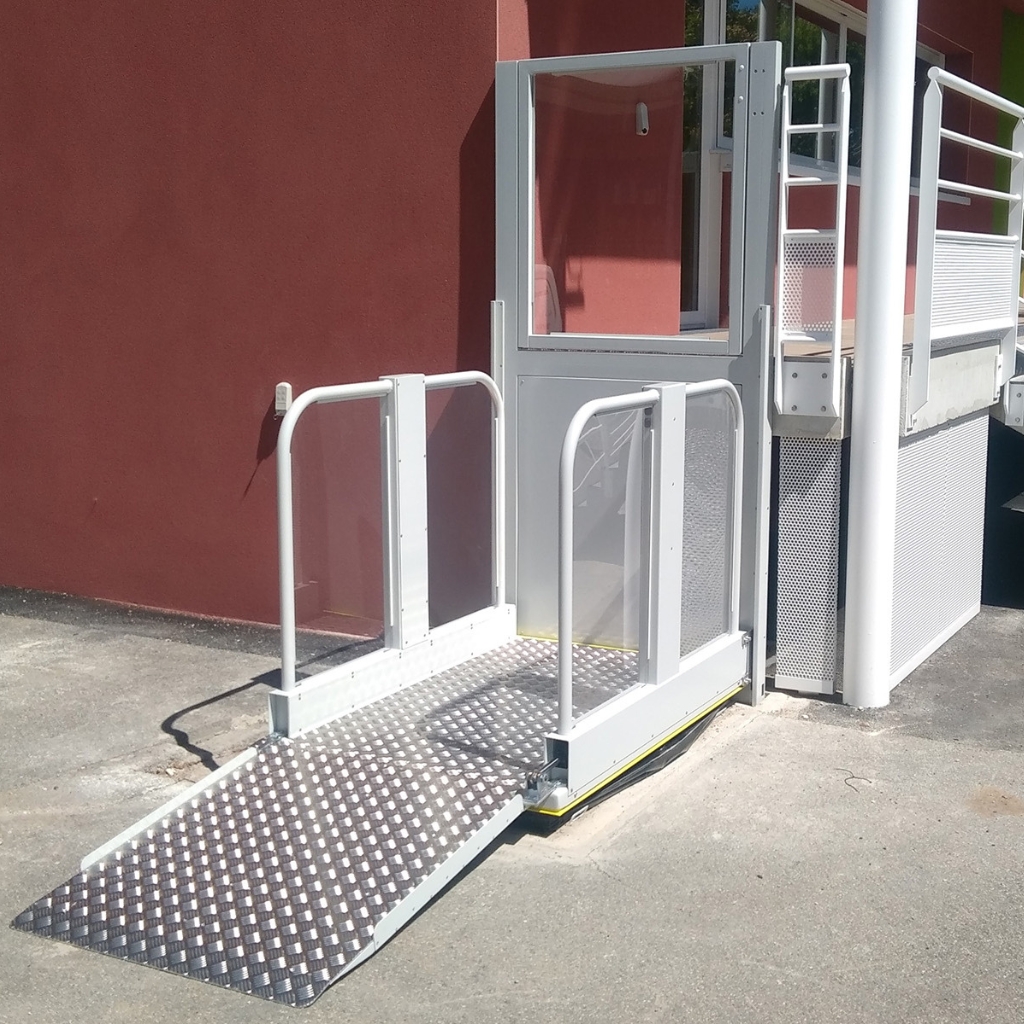

The platform folds to 125 mm, and the automatic ramp bridges the gap to the floor for a smooth roll-on.
Pit is optional
Install it on an existing floor with no excavation, or set it in a shallow pit for a flush finish.
Stable double scissor
Two actuators lift the platform together and carry up to 315 kg, enough for a wheelchair user and a companion.
Two platform widths
Choose a 900 mm or 1,100 mm wide platform, both 1,400 mm long, to suit the wheelchair and the space.
Wireless controls
A platform panel with display, plus radio call stations at each landing. Control by app is available as an option.
Finish to match the building
RAL 7035 or RAL 9007 as standard, any RAL colour optional, with a platform door or glass shaft available.
A Full Storey Step in a Small Footprint
The lift uses two scissor sets driven by two separate actuators. The control unit monitors the current each actuator draws and stops the lift if the two drift apart, so the platform stays level under load. The whole unit takes about 1,150 x 1,572 mm of floor space with the standard 900 mm platform.
At a 1:12 gradient, a ramp for a 1.3 metre rise runs more than 15 metres before landings are added. This lift covers the same rise in under 2 square metres of floor space, which makes it a practical retrofit for entrances that are already built.
Full Specifications
Configuration is matched to the site at the assessment. Confirm figures against the manufacturer's current data sheet before specifying.
| Specification | Detail |
|---|---|
| Lifting height | Up to 1,300 mm |
| Load capacity | 315 kg |
| Folded platform height | 125 mm |
| Platform size (inside) | 900 x 1,400 mm or 1,100 x 1,400 mm |
| Overall size (outside) | 1,150 x 1,572 mm or 1,350 x 1,572 mm |
| Lifting speed | 25 mm/s |
| Drive system | Double scissor mechanism, 2 x 24 V actuators |
| Power | 2 x 12 V / 9 Ah onboard batteries, charged from 1 x 230 V / 50-60 Hz |
| Duty cycle | 10% (6 minutes of travel per hour) |
| Pit | Not required; pit installation possible |
| Controls | Platform panel with display and key switch, wireless call stations at each landing |
| Standard finish | RAL 7035 or RAL 9007; any RAL colour optional |
| Options | Platform door, automatic door opener, glass shaft, side exit at the lower stop, Lift Control App |
| Standard | Designed to the guidelines of EN 81-41 |
Liftboy 5 vertical platform lift, Lehner Lifttechnik GmbH (Austria)
Safety on Every Side of the Platform
A scissor lift has moving parts under the platform and an open edge at the top landing. The lift protects the rider, the people nearby and the mechanism itself.
- Contact strips on all four sides stop the platform if it meets an obstacle on the way down
- A contact bar stops upward travel if something is caught above the platform

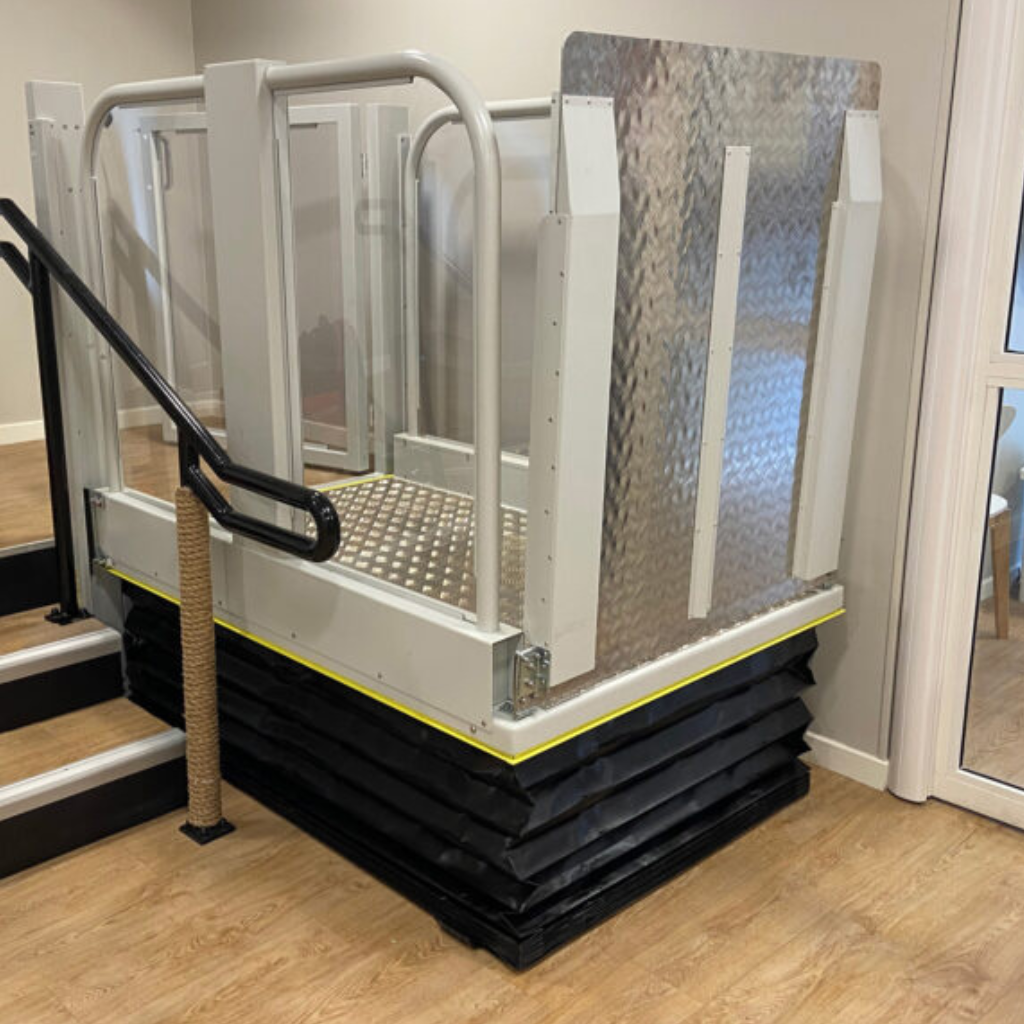

- Folding bellows enclose the scissor mechanism so hands and feet stay clear of it
- Overload control blocks upward travel and only lets the platform return to the lower level
- The upper gate stays locked until the platform arrives at the top landing
- The ramp only opens at the lower stop, and the platform will not rise until it is closed
- An emergency stop button and a key switch on the platform prevent unauthorised use
- Emergency lowering and manual ramp release let trained staff free a passenger if a fault occurs
Key Applications
Villas with raised entrances
For a front door or majlis a few steps above the driveway, where a ramp would take over the frontage.
Raised ground floors

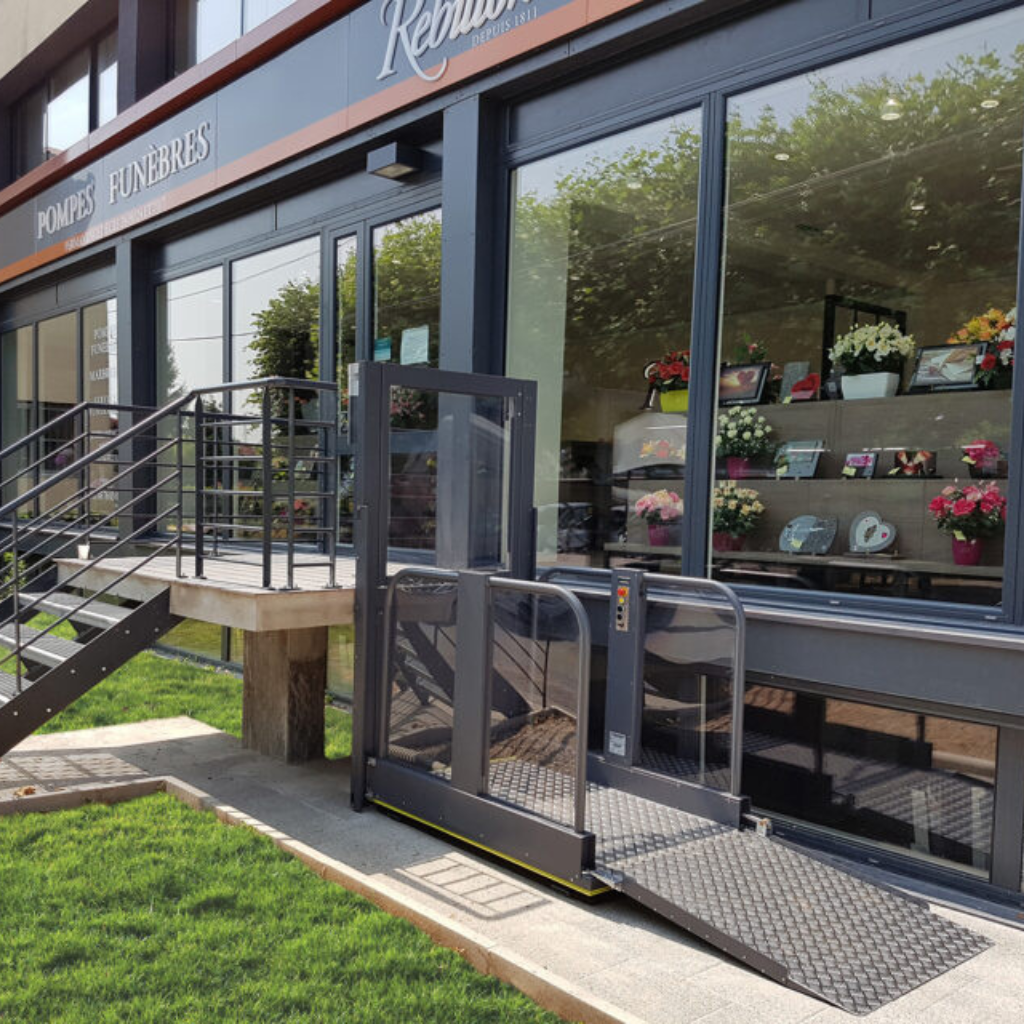

Step-free access to shops, offices and clinics built on a plinth, with wireless call stations at both levels.
Stages and podiums
Lets speakers, performers and graduates who use a wheelchair reach a stage or podium with everyone else.
Split levels inside buildings
Connects mezzanines and split-level floors where a full elevator would be out of proportion to the rise.
Frequently Asked Questions
Is this lift available in the UAE?
Yes. Flex Access supplies, installs and maintains it across Abu Dhabi, Dubai and the wider UAE.
Does it need a pit?
No. The platform folds down to 125 mm and the automatic ramp bridges the step from the floor, so it can be installed on an existing floor. A pit can be used if you want the platform flush with the floor.
How high does it lift, and how much can it carry?
Up to 1,300 mm, with a 315 kg load capacity on a 900 x 1,400 mm or 1,100 x 1,400 mm platform.
Is it suitable for public buildings?
Yes, for sites with occasional use such as offices, clinics, schools and event venues. Its duty cycle is 10%, or about 6 minutes of travel per hour. For a busy public entrance, Flex Access assesses expected traffic during the free site survey and recommends the right lift.
How does it compare with Flex Step and Alpin?
What maintenance does it need?
It needs regular servicing of its actuators, safety switches and onboard batteries, which are replaced as a pair when they no longer hold a charge. Flex Access provides scheduled maintenance for every lift it installs.
