In my work across the UAE, the most common problem I encounter is not a building that completely lacks a handicap toilet. The more frequent issue is a building that has one, professionally finished, signposted, and visible on the architect’s drawings that fails on specifics. The grab bars are at the wrong height. The door swings inward. There is no alarm system. The turning circle is 140 centimetres instead of 152.5 centimetres. On paper, the box is ticked. In practice, the toilet cannot be used safely or independently by the person it was designed for.
This guide covers what a compliant handicap toilet actually requires in the UAE. I have written it for architects, facility managers, and property owners who need to understand the Dubai Universal Design Code and Abu Dhabi International Building Code requirements, not in broad terms, but in the exact specifications that determine whether a facility is compliant. I cover definitions, mandatory dimensions, design checklist, grab bar specifications, alarm system requirements, and a complete accessories list.
What the UAE Means by Accessible Bathroom and Handicap Toilet
These terms are used interchangeably in common conversation, but it is worth establishing the correct institutional language before going further.
Definition: Accessible Sanitary Facility
The preferred institutional term in the UAE is ‘accessible toilet’ or ‘accessible sanitary facility.’ It refers to a toilet facility designed to be usable by people with physical disabilities, wheelchair users, ambulatory disability users, elderly individuals, and carers assisting others. The term ‘disabled toilet’ remains widely used in search language and legacy building codes, but accessible toilet is the current standard.
Under Federal Law No. 29 of 2006 Concerning the Rights of People of Determination, people with disabilities in the UAE are referred to as People of Determination. The law guarantees their right to access public and private spaces with dignity, and it is the legislative foundation for the accessible bathroom requirements in the codes that followed.
Three frequently asked questions I want to address here directly:
What does accessible bathroom mean?
A bathroom designed and built to allow an elderly a wheelchair user, a person with a mobility disability to enter, manoeuvre, use the toilet, and exit independently and safely. The specific design requirements dimensions, fixtures, grab bars, alarm system are what make a bathroom genuinely accessible rather than simply larger than standard.
What is the difference between an accessible toilet and a disabled toilet?
They refer to the same facility. ‘Disabled toilet’ is the common search term and appears in legacy documents. ‘Accessible toilet’ or ‘accessible sanitary facility’ is the preferred code and institutional language in the UAE. In this article, I use both terms, and they mean the same thing.
Can a normal person use an accessible washroom?
Yes. An accessible toilet is not exclusively for people with disabilities. Anyone may use it, including carers assisting others, parents with young children, and people with temporary injuries or mobility challenges. The facility should remain available to those who need the additional space, but it is not legally restricted.
Which UAE Properties Are Legally Required to Have Wheelchair Accessible Bathroom?
The short answer: most commercial, public, and institutional properties. The Dubai Universal Design Code is mandatory, not advisory, for new builds in Dubai. The Abu Dhabi International Building Code, adopted in October 2013 and based on a modified version of the ICC/ANSI A117.1 standard, governs Abu Dhabi.
Under the Dubai Universal Design Code, an accessible toilet is mandatory wherever a bank of male and female toilets is provided. Every time you provide standard toilet facilities, you must provide an accessible unisex toilet at the same location. That requirement applies to:
- Transport facilities (airports, metro stations, bus terminals)
- Hospitals and clinics
- Schools and colleges
- Mosques
- Hotels and tourist attractions
- Leisure facilities (art galleries, shopping malls, gyms, sports venues)
- Commercial office buildings
For Abu Dhabi businesses pursuing the DAMJ Award, Abu Dhabi’s formal recognition for organisations excelling in accessibility and inclusion compliant accessible bathroom provisions are assessed as part of the audit. Non-compliance in this area directly affects your DAMJ scoring.
The liability point is straightforward: if an incident occurs inside an accessible toilet that does not meet code a fall that could not be reported because there was no alarm system, an injury resulting from a grab bar that could not be reached the building owner carries direct liability exposure. Compliance is not just an ethical position; it is risk management.

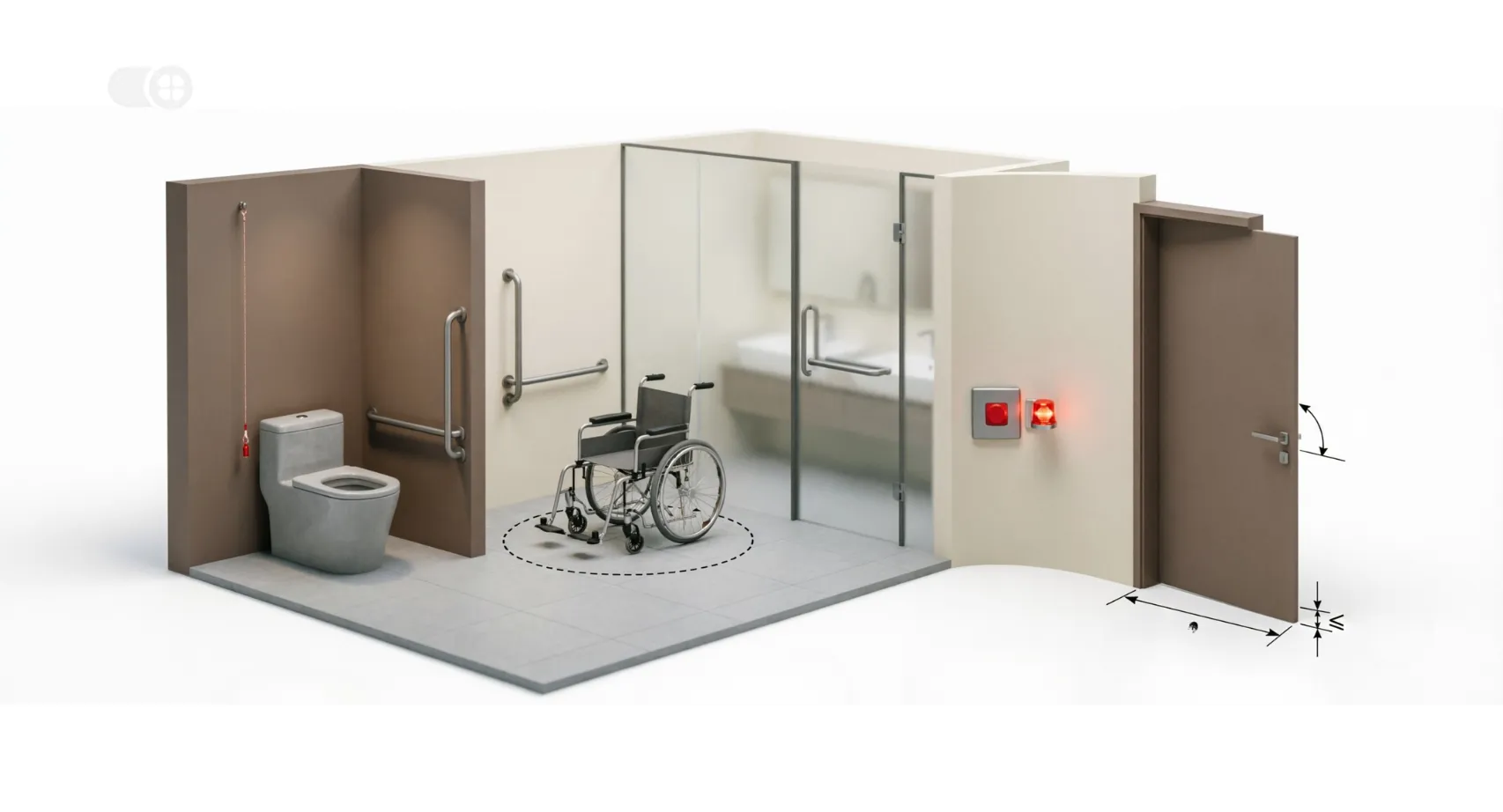

Minimum Dimensions for a Wheelchair Accessible Bathroom Under UAE Code
This is where most projects fall short. Architects specify a room labelled ‘accessible toilet’ on the plan, but the dimensions are derived from general knowledge rather than the actual UAE standards. The table below gives the exact figures from the applicable codes.
| Element | UAE / Abu Dhabi Standard | Code Reference |
|---|---|---|
| Turning circle diameter | 152.5 cm minimum | AADC / ICC A117.1 (modified) |
| Door clear opening width | 81.5 cm min (90 cm recommended) | AADC SSCP Annexes, Section 7.1 |
| Door swing direction | Outward or sliding only | Dubai Universal Design Code, Section 5.19.1 |
| Door handle bar height | 900 to 1,000 mm from floor | Dubai Universal Design Code, Section 5.19.1 |
| Toilet seat height | 43 to 48 cm (17 to 19 inches) | ICC A117.1 (modified for Abu Dhabi) |
| Toilet centreline to side wall | 40 to 46 cm | Abu Dhabi International Building Code |
| Grab bar height (horizontal) | 840 to 915 mm (33 to 36 inches) | Abu Dhabi IBC, Section 609 / Dubai UDC Section 5.19.2 |
| Toilet pan clearance depth | 142 cm (56 inches) from rear wall | ICC A117.1 (modified) |
| Toilet pan clearance width | 152 cm (60 inches) from side wall | ICC A117.1 (modified) |
To answer the two most common dimension questions directly:
What is the minimum size for a wheelchair accessible bathroom?
The room must accommodate a turning circle of at least 152.5 cm in diameter, kept fully clear at all times. The toilet pan itself requires 152 cm of clear width and 142 cm of clear depth around it. When you account for the washbasin, door clearance, and fixtures, a genuinely functional accessible toilet room is typically a minimum of 1.7 m x 2.3 m and in my experience, going slightly larger than the minimum makes a material difference to usability.
What is the smallest wheelchair accessible shower?
A transfer shower for a person using a transfer chair requires a minimum of 91 cm (36 inches) internal width. A shower that allows a wheelchair user to turn inside or receive carer assistance requires a minimum of 152 cm (60 inches) wide. These dimensions are per ICC A117.1, which forms the basis of the Abu Dhabi code.
Handicap Toilet Design Standards (The Full Compliance Checklist)
Meeting the dimension requirements is necessary but not sufficient. The following checklist covers every design element required for a fully compliant accessible toilet under UAE code. I use this as a review framework when assessing facilities for clients.
- Turning circle clear at all times: 5 cm diameter. No fixtures, bins, or equipment may encroach on this space.
- Door swings outward or slides: An inward-swinging door is a code violation. If a person collapses inside, an inward door makes rescue access impossible.
- Door handle bar at correct height: A horizontal handle bar of 300 mm length, positioned at 900 to 1,000 mm from the floor, on the inside 300 mm from the hinge side, and on the outside by the latch side. (Dubai Universal Design Code, Section 5.19.1)
- Grab bars on side wall and rear wall: At correct heights and lengths detailed in the next section.
- Swing-up grab bar where required: Specified for residential Type B units under the Abu Dhabi International Building Code. Recommended where bilateral fixed bars would restrict wheelchair side-transfer access.
- Disabled toilet alarm system with floor-level pull cord: The cord must reach to near floor level so it can be activated by a person who has fallen.
- International Symbol of Accessibility on the door: Required signage. The handicap toilet sign must be clearly visible and mounted at accessible height.
- Lever-operated or sensor taps only: All fixtures must be operable with one hand and require no tight gripping, pinching, or wrist twisting.
- Toilet seat at 43 to 48 cm height: Load-rated to 150 kg minimum. Seat must not be sprung to return automatically to a raised position.
- 30% minimum luminance contrast: Between toilet seat and surrounding wall/floor surfaces. This supports visually impaired users in locating the fixture.
- Toilet paper dispenser positioned correctly: Below the grab bar. Between 48 and 122 cm from the floor. Between 18 and 23 cm in front of the toilet. Not positioned behind the grab bar.
- Fold-down changing table: Mandatory in all accessible toilet rooms under the Dubai Universal Design Code, Section 5.19. This is frequently omitted and is an automatic compliance failure.
- Non-slip floor surface: Rated for wet conditions. Surface contrast with walls to support visually impaired navigation.
- Wheelchair knee clearance below washbasin: Minimum 69 cm clear height below the basin so an elderly user can approach frontally.
When I review projects, items 6 (alarm system), 11 (dispenser position), and 12 (changing table) are the three most commonly missing. All three are mandatory, not optional.
Grab Bar Height for a Handicap Toilet: The Specification Most UAE Projects Get Wrong
Grab bar height is the single most common compliance error I encounter in accessible toilets across the UAE. The bars are present, they are fixed to the wall, they look correct but they are installed at a height that is convenient for the contractor rather than the height specified in the code. The difference of even 50 to 80 mm can make the bars unreachable or unsafe for a wheelchair user transferring onto the toilet.
Here are the correct specifications:
- Horizontal grab bars: installed at 840 to 915 mm (33 to 36 inches) above the finished floor, measured to the top of the gripping surface. (Abu Dhabi International Building Code, Section 609; Dubai Universal Design Code, Section 5.19.2)
- Side wall grab bar: minimum 106 cm (42 inches) long. Positioned no more than 30 cm (12 inches) from the rear wall. Must extend at least 137 cm (54 inches) from the rear wall.
- Rear wall grab bar: minimum 91 cm (36 inches). Must extend at least 30 cm (12 inches) from one side of the toilet centreline and at least 61 cm (24 inches) from the other side. Per S. Access Board guidelines (which form the basis of the ICC A117.1 standard adopted in Abu Dhabi), the rear bar can be shifted to the open side if it conflicts with the location of the flush control.
- Structural strength: grab bars must withstand 250 lbs (approximately 113 kg) of vertical or horizontal force at any point on the bar, fastener, mounting device, or supporting structure.
- Bar diameter: 25 to 1.5 inches (32 to 38 mm). Spaced exactly 38 mm from the wall, this is an absolute dimension, not a minimum, to prevent hand entrapment. Rounded edges throughout. No rotation in fittings.
Field Note: Install Wall Blocking During Initial Construction
The most expensive grab bar installation is a retrofit. If wall blocking structural reinforcement inside the wall cavity is not installed between 46 cm and 122 cm from the floor during initial construction, adding grab bars later requires either opening the wall or using specialist surface-mounted anchors that rarely achieve the required load rating. If you are in the design phase, specify blocking now. It costs almost nothing at this stage and eliminates a significant cost and compliance risk later.
When to Use a Swing-Up Grab Bar?
A swing-up grab bar folds flat against the wall when not in use, allowing an elderly or a wheelchair user to approach the toilet from the side without obstruction. When lowered, it functions as a standard grab bar for transfer support. The Abu Dhabi International Building Code specifies swing-up grab bars for water closets in residential Type B units. I also recommend them in any accessible toilet where the room dimensions make bilateral fixed-bar installation impractical particularly in retrofits where you are working within an existing room footprint.

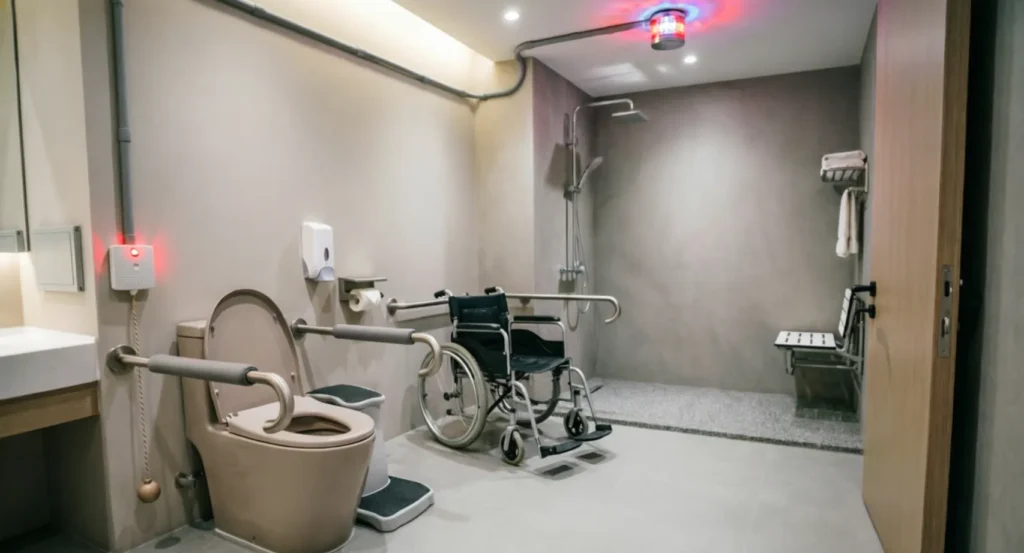

Disabled Toilet Alarm System: What It Is, What UAE Code Requires, and What Happens Without One?
A disabled toilet alarm system is a visual and audio pull-cord alarm that allows a person who has fallen or requires assistance to alert staff even from floor level. That last part is critical and is the reason the pull cord must reach to near the floor.
A person who has had a fall inside an accessible toilet may not be able to stand, reach a wall-mounted button, or call out loudly enough to be heard. The pull cord running from the alarm panel to within a few centimetres of the floor allows that person to activate the alarm from wherever they are in the room. The alarm panel outside the cubicle then provides both an audible signal and a visual indicator, a light or display, so staff can identify which facility requires attention without having to open the door.
This is a mandatory requirement, not a recommendation. Per the AADC SSCP Annexes, Section 7.1, all accessible toilets in public spaces must include an audio and visual alarm system. It applies to commercial, healthcare, hospitality, education, and public-sector facilities.
What happens without one? If an incident occurs inside an accessible toilet that has no functioning alarm system, the building owner carries direct liability. I have reviewed facilities where the alarm was installed during fit-out but the pull cord was subsequently tied up by cleaning staff who found it inconvenient. The system was physically present but non-functional. That is not compliance it is a documented liability.
Smart Integration Option
Modern disabled toilet alarm systems can be linked to a building management system rather than a standalone panel. When integrated with a smart facilities management platform, the alarm triggers a notification to duty staff via their devices, logs the alert with a timestamp, and can be monitored remotely. This is particularly relevant for larger developments and healthcare facilities where response time matters.
If you are looking at smart home and access control integration for accessibility features, the Flex Access smart home solutions page covers how we approach this for residential and commercial clients.
Handicapped Toilet Accessories List (Everything a Compliant Accessible Bathroom Needs)
This is the complete reference list. Every item below is either mandatory under UAE code or a code-referenced requirement that applies in specific facility types. I have included the purpose of each accessory so that you understand what you are installing and why not just what goes on the procurement list.
| # | Accessory | Requirement and Purpose |
|---|---|---|
| 1 | Fixed side grab bar | Transfer support getting on and off the toilet. Must be 840–915 mm height, minimum 106 cm long. |
| 2 | Fixed rear grab bar | Stability when seated and when rising. Minimum 91 cm, extending 30 cm each side of centreline. |
| 3 | Swing-up grab bar | Used where bilateral fixed bars restrict wheelchair approach. Folds flat against the wall when not in use. |
| 4 | Disabled toilet alarm system | Visual and audio pull-cord alarm. Cord must reach near floor level. Mandatory in all public-use accessible toilets. |
| 5 | Raised toilet seat | Required if the base toilet is below 43 cm. Load-rated to 150 kg minimum. |
| 6 | Lever or sensor taps | Operable with one hand. No tight grip, pinching, or wrist twisting required. |
| 7 | Toilet paper dispenser | Positioned below the grab bar, 48–122 cm from the floor, 18–23 cm in front of the toilet. Not behind the grab bar. |
| 8 | Accessible toilet sign | International Symbol of Accessibility on the door. Mandatory per Dubai Universal Design Code. |
| 9 | Fold-down changing table | Mandatory in all accessible toilet rooms under the Dubai Universal Design Code. |
| 10 | Accessible washbasin | Knee clearance below (minimum 69 cm), lever or sensor tap, positioned within seated reach range. |
| 11 | Adjustable or angled mirror | Positioned for use at seated wheelchair height. Tilted or full-length mirrors both work. |
| 12 | Non-slip floor treatment | Rated for wet conditions. Contrast with walls to assist visually impaired users. |
| 13 | Sanitary disposal bin | Within reach from the toilet seat without standing. Lid operated by foot or lever. |
| 14 | Nurse call / emergency button | Required in healthcare facilities. Separate from the standard alarm system. |
Items 4 (disabled toilet alarm system) and 9 (fold-down changing table) are the two most frequently absent in projects I review. Both are mandatory under the Dubai Universal Design Code. Their absence is not a minor oversight it is a compliance failure that will be flagged in any formal accessibility audit.
For a broader view of the mobility and access solutions we supply including platform lifts, stair solutions, and tactile guidance systems that complete the accessible route to the toilet see our accessibility solutions page.
From Minimum Compliance to Genuine Accessibility: What the Code Does Not Tell You
Meeting every specification in the code is necessary. It is also not sufficient to guarantee that the toilet works for the person using it. In projects I have reviewed across the UAE, I have seen all of the following in facilities that passed visual inspection:
- Outward-swinging doors installed correctly, but with insufficient corridor clearance outside them for a wheelchair user to pull the door open after approaching.
- Grab bars installed at the correct height but fixed into wall finishes without structural backing, failing under applied load.
- A fold-down changing table specified and installed, but positioned such that it cannot be deployed without moving a wheelchair out of the room first.
- Alarm pull cords tied up or shortened by cleaning staff, rendering the system non-functional.
- A 152 cm turning circle shown on plan but encroached upon by a pedal bin or cleaning equipment stored inside the toilet.
These failures do not show up in a drawing review. They show up when you put a wheelchair in the room.
My recommendation for any project where the accessible toilet is a meaningful part of the building’s compliance obligation: test it from a wheelchair during fit-out, before sign-off. What passes inspection on a drawing does not always function for the person using it. If you are engaging a specialist early enough, this review can be done at the time the room is being finished when corrections cost very little.
For related UAE accessibility code requirements, the guidance on wheelchair ramp slope in the UAE follows the same principle: the accessible route to the toilet matters as much as the toilet itself.
Frequently Asked Questions
How do you make a wheelchair accessible bathroom?
Start with the four non-negotiables: a minimum 152.5 cm turning circle, an outward-swinging or sliding door, grab bars at the correct height and length, and a disabled toilet alarm system with a floor-level pull cord. From there, work through the full 14-point checklist above. For new builds in the UAE, the Dubai Universal Design Code and Abu Dhabi International Building Code are the two governing documents.
What is the height of a handicap toilet?
The toilet seat must sit between 43 and 48 cm from the finished floor to the top of the seat. This is the standard specified in the ICC A117.1 code base, which is the reference for both the Abu Dhabi International Building Code and the Dubai Universal Design Code.
How far should an accessible toilet be from any point in a public building?
The Dubai Universal Design Code specifies a maximum of 150 metres between an accessible toilet and any point in a public building. This is a maximum travel distance, not a target. In buildings with multiple floors or large footprints, this requirement typically means accessible toilets are needed on every level and in multiple locations.
Why do we need swing-up grab bars for disabled toilets?
A swing-up grab bar allows bilateral grab bar support bars on both sides of the toilet, without permanently blocking the wheelchair approach space on the transfer side. When folded up, the bar lies flat against the wall and the full side clearance is available for a wheelchair to pull alongside the toilet. When lowered, it provides the transfer support the user needs. The Abu Dhabi International Building Code specifies swing-up grab bars for water closets in residential Type B units. They are also the practical choice in retrofit projects where room dimensions constrain fixed-bar installation.
Get a Compliance Review for Your Property
A handicap toilet that meets UAE code is not difficult to get right but it requires knowing the exact specifications and having someone verify them in the room, not just on a drawing. At Flex Access, we review accessible toilet design and installation for architects, developers, and facility managers across the UAE.
Regulatory References
- Federal Law No. 29 of 2006 Concerning the Rights of People of Determination
- Dubai Universal Design Code, Sections 5.19, 5.19.1, 5.19.2
- Abu Dhabi International Building Code (based on ICC/ANSI A117.1, modified), adopted October 2013, Sections 604 and 609
- AADC SSCP Annexes, Section 7.1
- UAE National Policy for Empowering People of Determination, 2017
