Doors & Parking Access Solutions
Traffic & Security Bollards
FAAC Access Control Solutions
FAAC traffic and security bollards are designed to control vehicle movement, define restricted areas, and protect sensitive zones — while still allowing pedestrian and bicycle access.
The range includes automatic, semi-automatic, fixed, and certified high-security bollards suitable for residential, commercial, urban, industrial, and perimeter protection applications.
can be used at
House
Business
Vehicles
Pools
Your are here

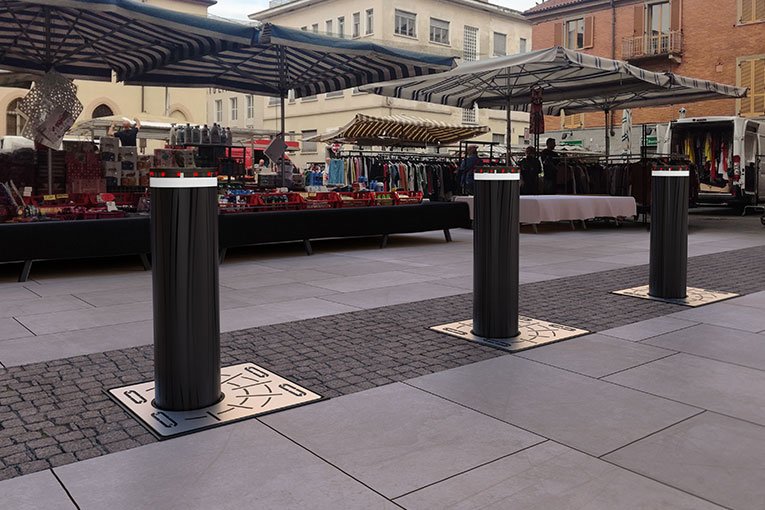

1 – Automatic Retractable Traffic Bollards
J200 HA – Automatic Bollard
Ideal for managing traffic flow in residential and commercial areas, this hydraulic retractable bollard automates barrier control without permanent obstruction.
Technical Details
- Type: Hydraulic automatic operator
- Cylinder height (from ground): 600 mm
- Cylinder diameter: 200 mm
- Reflective strip height: 25 mm
- Standard colour: Orange
- Rising time: ~5 s
- Descent time: ~7 s
- Power supply: 220-240 V ~ 50/60 Hz
- Max. power: 230 W
- Protection class (pump): IP67
- Load class (EN 124): C250
- Total weight: ~90 kg
- Use: Residential traffic control
Features
- Hydraulic lock in raised position
- Release key for emergency manual lowering
- Optional LED light, buzzer, and accessories
J275 HA 2K20 – Automatic Perimeter Protection Bollard
Designed for stricter perimeter protection, this model is suitable where enhanced security is needed — including perimeter entry points.
Technical Details
- Type: Hydraulic unit
- Cylinder height: 800 mm
- Cylinder diameter: 275 mm
- Reflective strip height: 55 mm
- Rising time: ~8 s
- Descent time: ~4.5 s
- Emergency descent (optional): ~2 s
- Power supply: 220-240 V ~ 50/60 Hz
- Max. power: 575 W
- Protection class (pump): IP67
- Traffic bollard weight: ~170 kg
- Break-in resistance: 673,000 J (dual unit)
- Load class (EN 124): C250
- Use: Perimeter protection applications

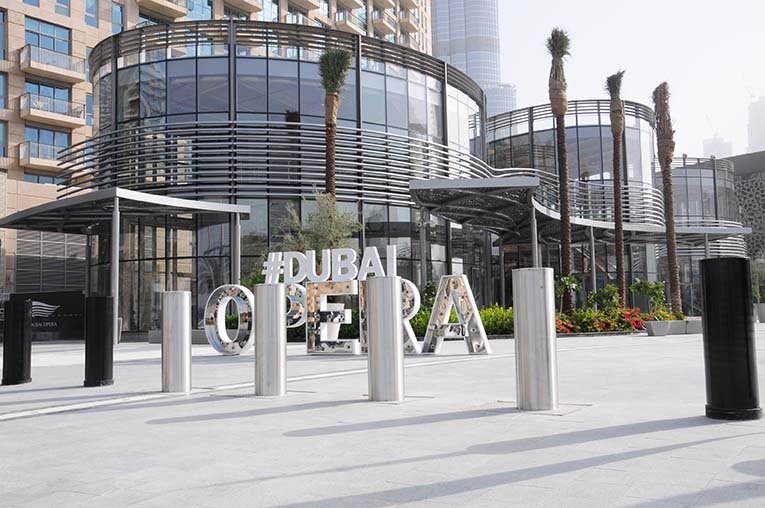

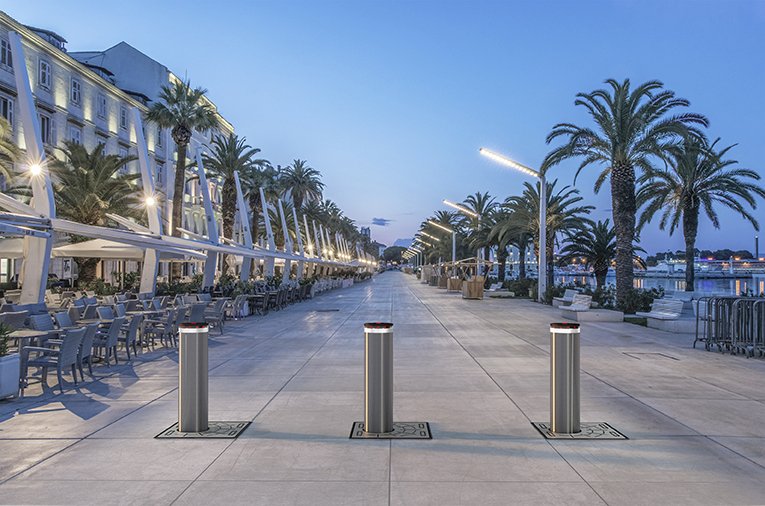

2 – Semi-Automatic Traffic Bollards
J275 SA – Semi-Automatic Bollard
A cost-effective solution where full automation is not required or wiring is difficult. The bollard is manually lowered and automatically raised with a release key.
Technical Details
- Type: Single-acting gas operator
- Cylinder height: 600 mm
- Cylinder diameter: 275 mm
- Reflective strip height: 55 mm
- Standard colour: Orange
- Release device: Key-operated (included)
- Traffic bollard weight: ~70 kg
- Load class (EN 124): C250
- Impact resistance: 38,000 J → 67,000 J
- Break-in resistance: 128,000 J → 207,000 J
- Use: Commercial, industrial, urban restricted access
Features
- Mechanical lock in raised position
- Reflective strip for visibility
- Optional stainless steel finish available
3 – Fixed Traffic Bollards
J200 F – Fixed Bollard
Permanent bollard for defining pedestrian zones or fixed access restriction. Suitable for residential and commercial contexts where vehicular access must be blocked.
Technical Details
- Cylinder height from ground: 600 mm
- Cylinder diameter: 200 mm
- Cylinder treatment: Cataphoresis and polyester powder paint, dark grey metallised RAL 7021-Satin finish
- Reflective strip height: 25 mm
- Standard reflecting strip colour: Orange
- Total weight: 35 Kg
J275 F – Fixed Traffic Bollard
Fixed bollard version of the retractable J275 series, commonly used in commercial, industrial, and urban restricted traffic areas.
Technical Details
Model | J275 F H600 | J275 F H800 | J275 F H600 Stainless steel | J275 F H800 Stainless steel |
Cylinder height from ground | 600 mm | 800 mm | 600 mm | 800 mm |
Cylinder diameter | 275 mm | |||
Cylinder treatment | Cataphoresis and polyester powder paint, dark grey metallised RAL 7021 | Satin finish | ||
Reflective strip height | 55 mm | |||
Standard reflecting strip colour | Orange | |||
Break in resistance | 128.000 J | 207.000 J | ||
Total weight | 34 Kg | 38 Kg | 34 Kg | 38 Kg |
4 – Fixed High-Security Bollards
JS 80 F – Fixed Security Bollard
Certified for perimeter protection and crash-resistant applications, capable of stopping heavy vehicular threats.
Compliant with PAS 68, IWA 14-1, and ASTM F2656 standards, this bollard is engineered for high-security installations.
Technical Details
- Height: 1,000 mm
- Cylinder diameter: 275 mm
- Reflective strip height: 55 mm
- Standard colour: White reflective strip
- Weight (underground base): ~120 kg
- Traffic bollard weight: ~150 kg
- Break-in resistance: 1,852,000 J
- Use: Perimeter security and certified applications
- Protective sleeve: mDure® (optional stainless finish)
5 – Automatic Security Bollards
JS 48 HA – Hydraulic Automatic Security Bollard
High-performance security bollard designed for sensitive perimeter protection with certification to withstand vehicle impacts and remain operational.
Technical Details
- Cylinder height: 1,000 mm
- Cylinder diameter: 275 mm
- Rising speed: ~170 mm/s (standard)
- Quick rise (EFO) speed: ~500 mm/s
- Descent speed: ~250 mm/s
- Power supply: 207-243 V ~ 50/60 Hz
- Max. power: 3,500 W
- Protection class (pump): IP67
- Load class (EN 124): C250
- Traffic bollard weight: 530–560 kg
- Break-in resistance: 673,000 J
- Operating temperature: –15 °C to +80 °C (with heater –40 °C to +80 °C)
- Use: High perimeter security
Features
- Hydraulic lock in raised position
- Flashing LED ring and reflector strip
- Movement signal (acoustic buzzer)
- Emergency release key
- Optional accessories: pit cover, heater, manual pump
General Advantages of FAAC Bollards
- Traffic control without restricting pedestrian access — ideal for mixed-use public spaces.
- Wide range of configurations — from residential to high-security perimeter protection.
- Certified impact resistance on select high-security models — suitable for government, embassy, military, and infrastructure sites.
- Retractable, semi-automatic, and fixed options — flexible design depending on infrastructure and wiring conditions.
Typical Applications
- Residential and commercial vehicle access control
- Urban restricted traffic zones
- Pedestrian priority areas
- Industrial and logistics facilities
- Government buildings and perimeter security
- Public plazas and heritage zones
