PelicanPool
Portable Pool Lift

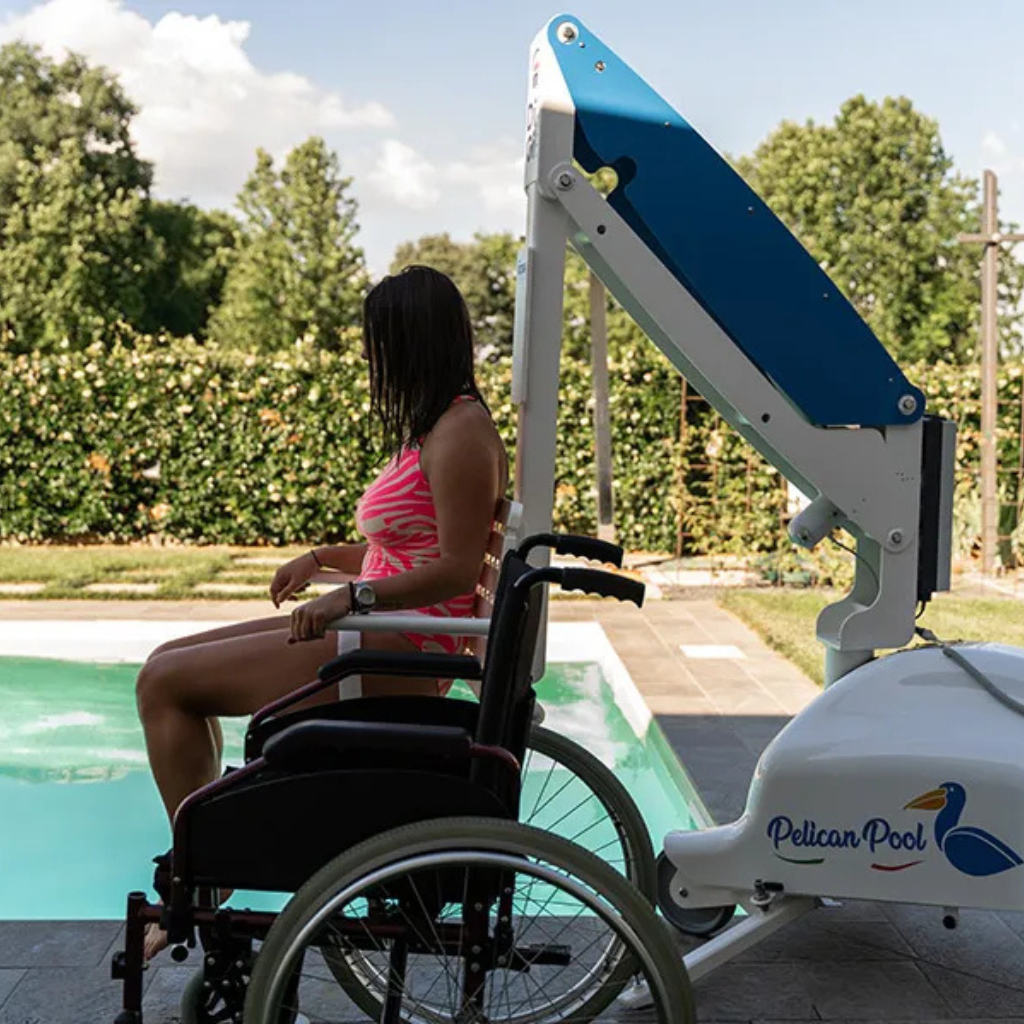

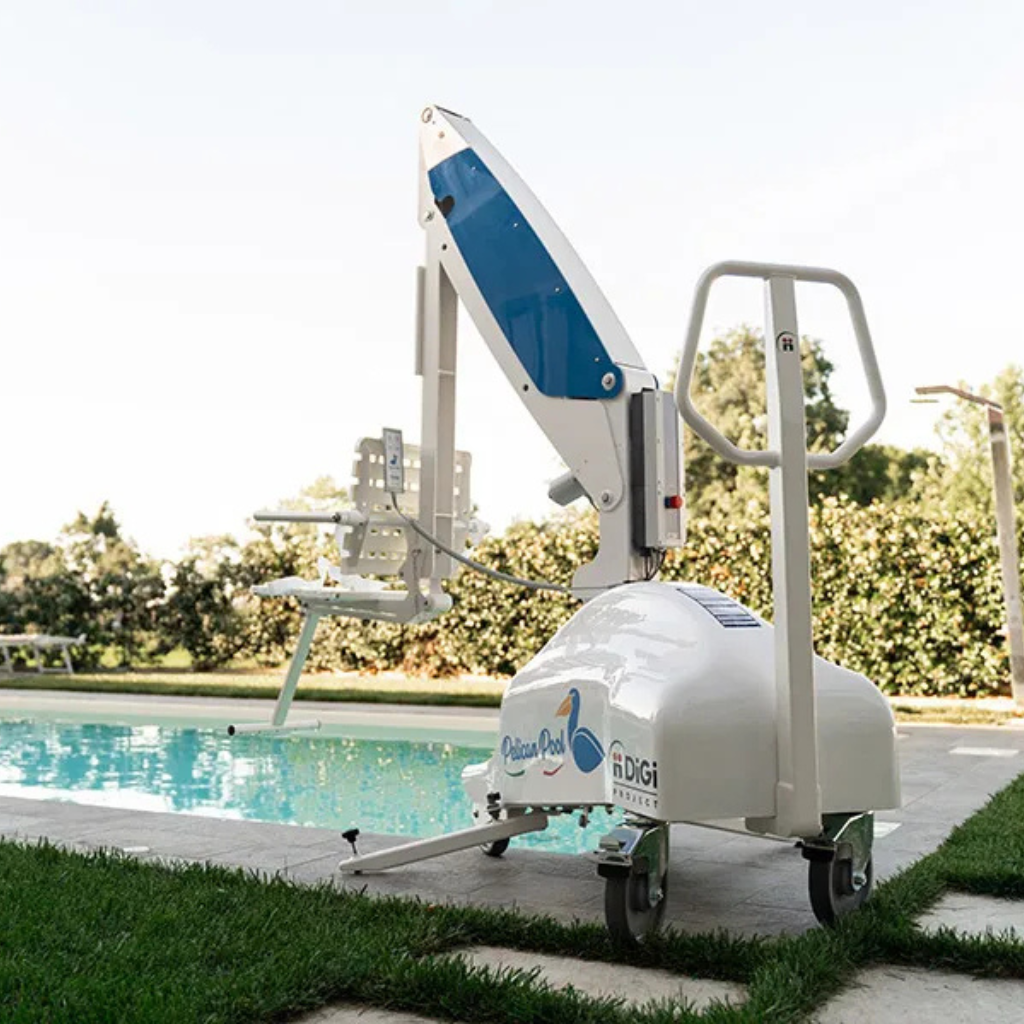

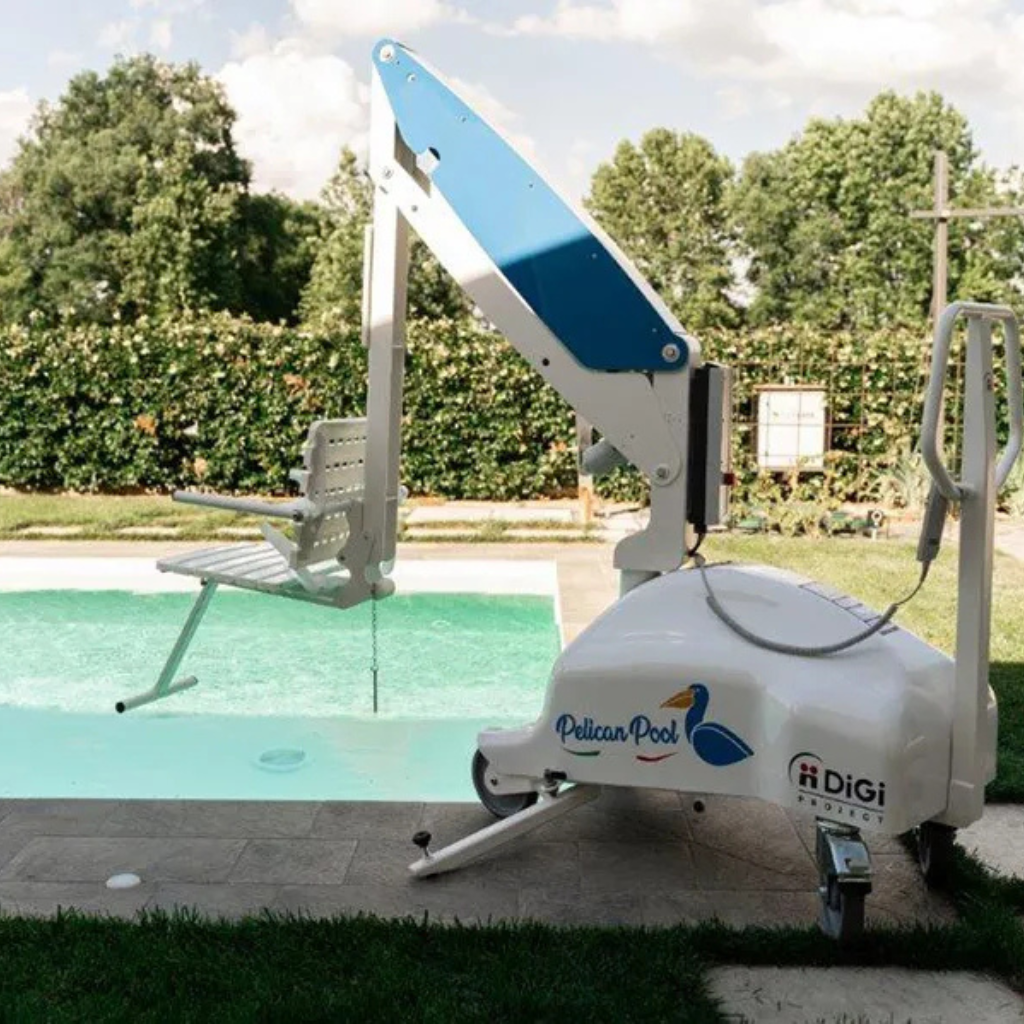

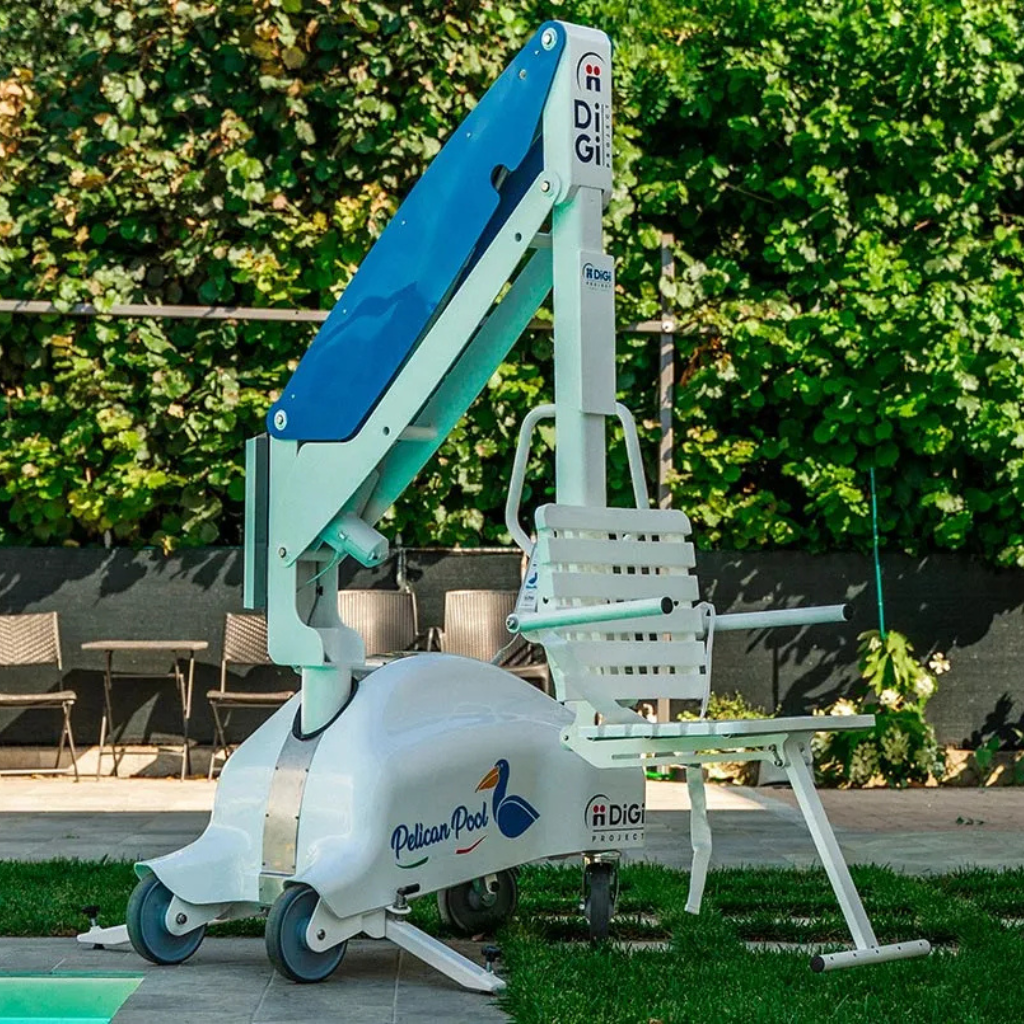

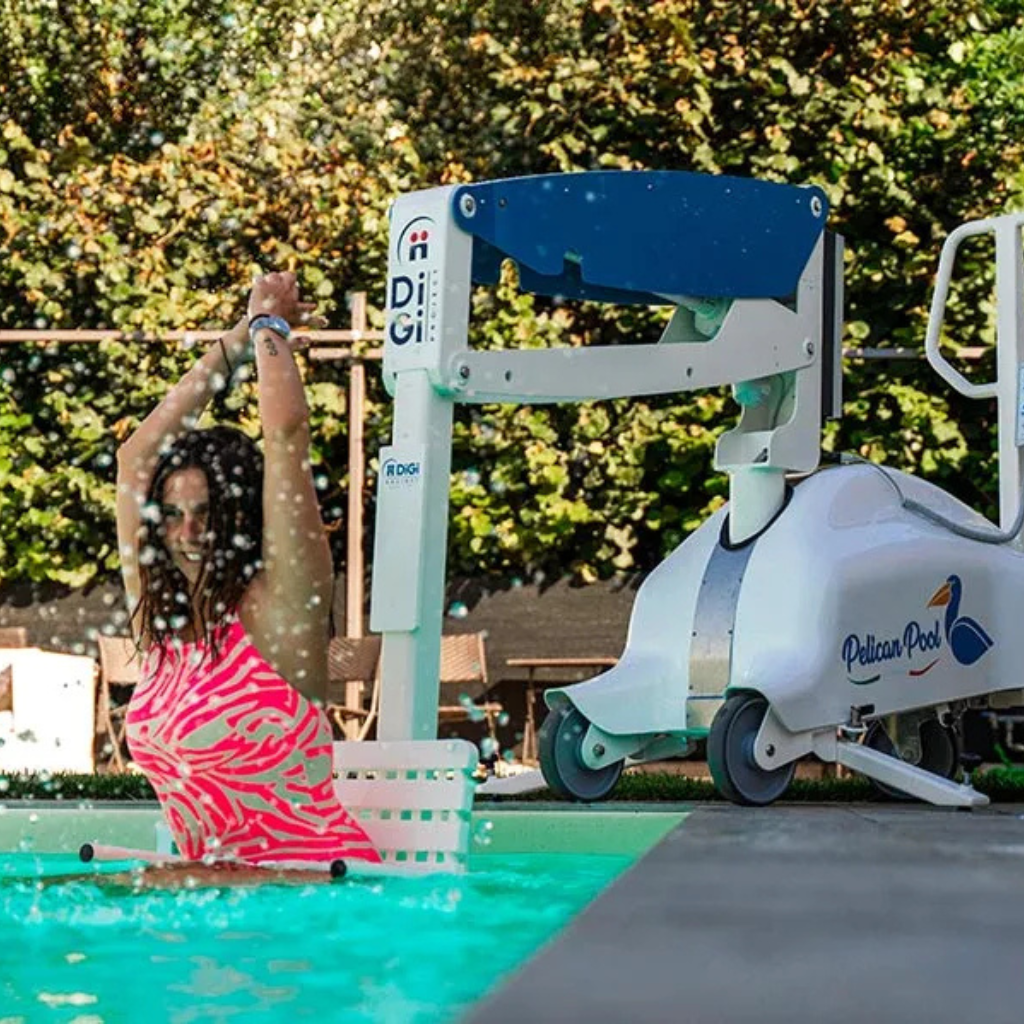

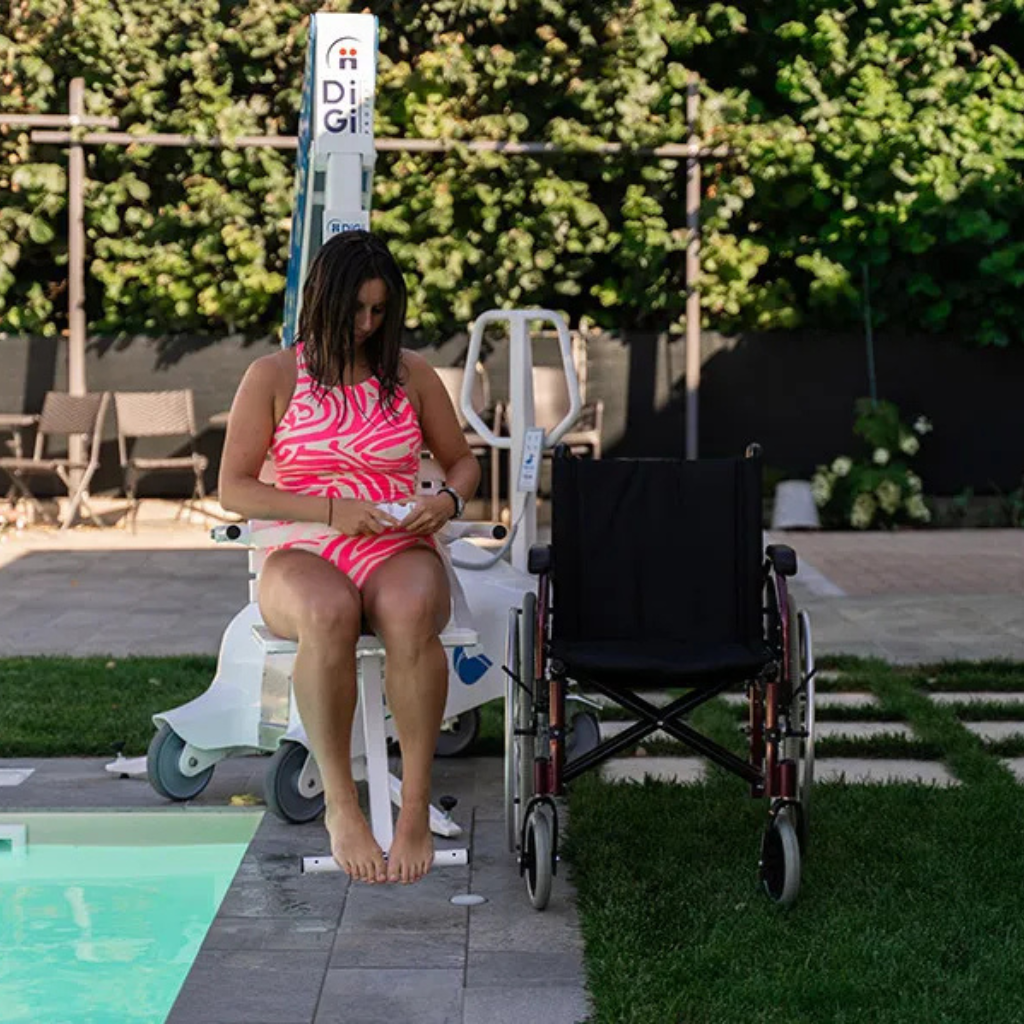

PelicanPool is a mobile medical pool lift designed to allow users with reduced mobility to enter and exit the pool in complete autonomy.
Thanks to its advanced technical features and seat rotation system, it removes architectural barriers even in pools with external walls up to 50 cm high.
can be used at
House
Business
Pools
Your are here
Technical Details
Maximum user capacity
140 kg
Maximum travel
1645 mm
Seat immersion depth in water
865 mm
Lowering & lifting time with load
25 seconds
Lift weight
340 kg
Battery
24 V rechargeable system
Average autonomy
30 working cycles
Safety & Functional Features

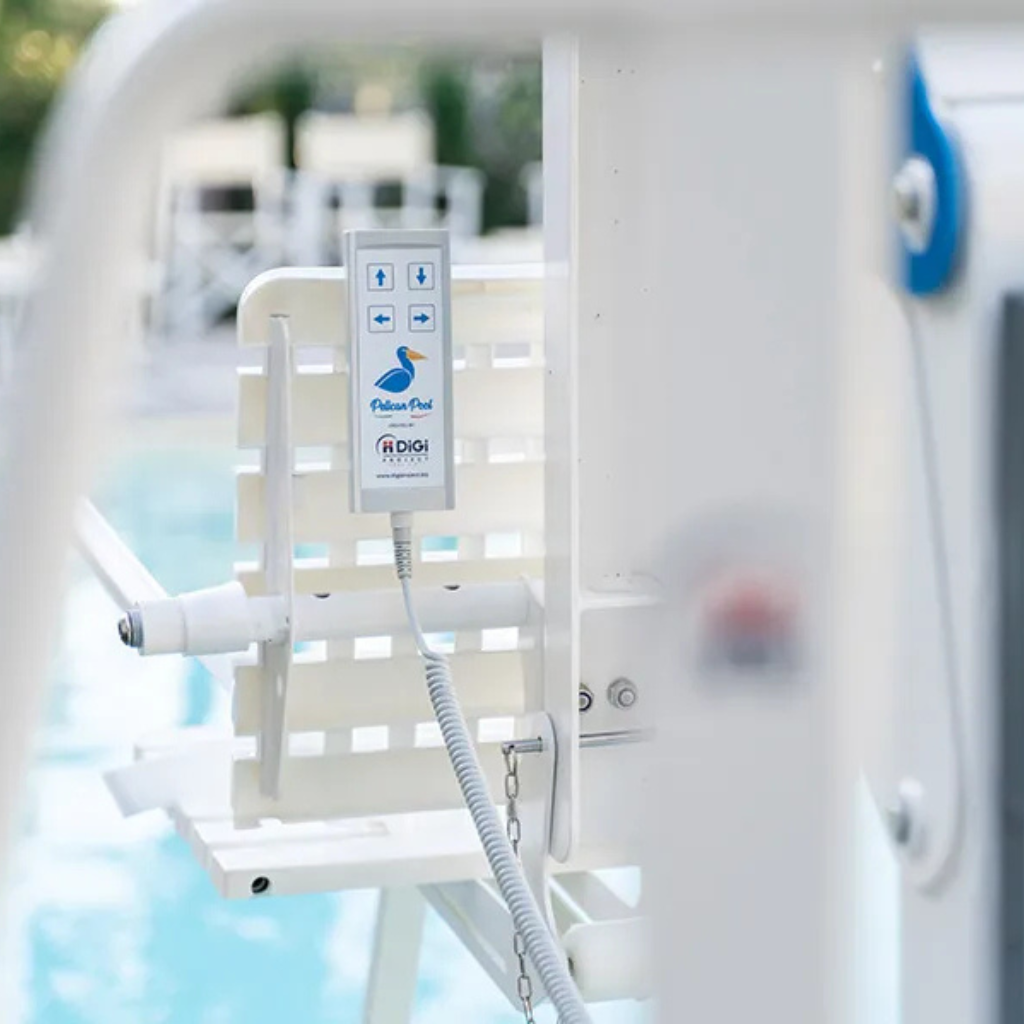

- Mobile push-button control with IPX06 spiral cable (controls lifting, lowering, and seat rotation from water)

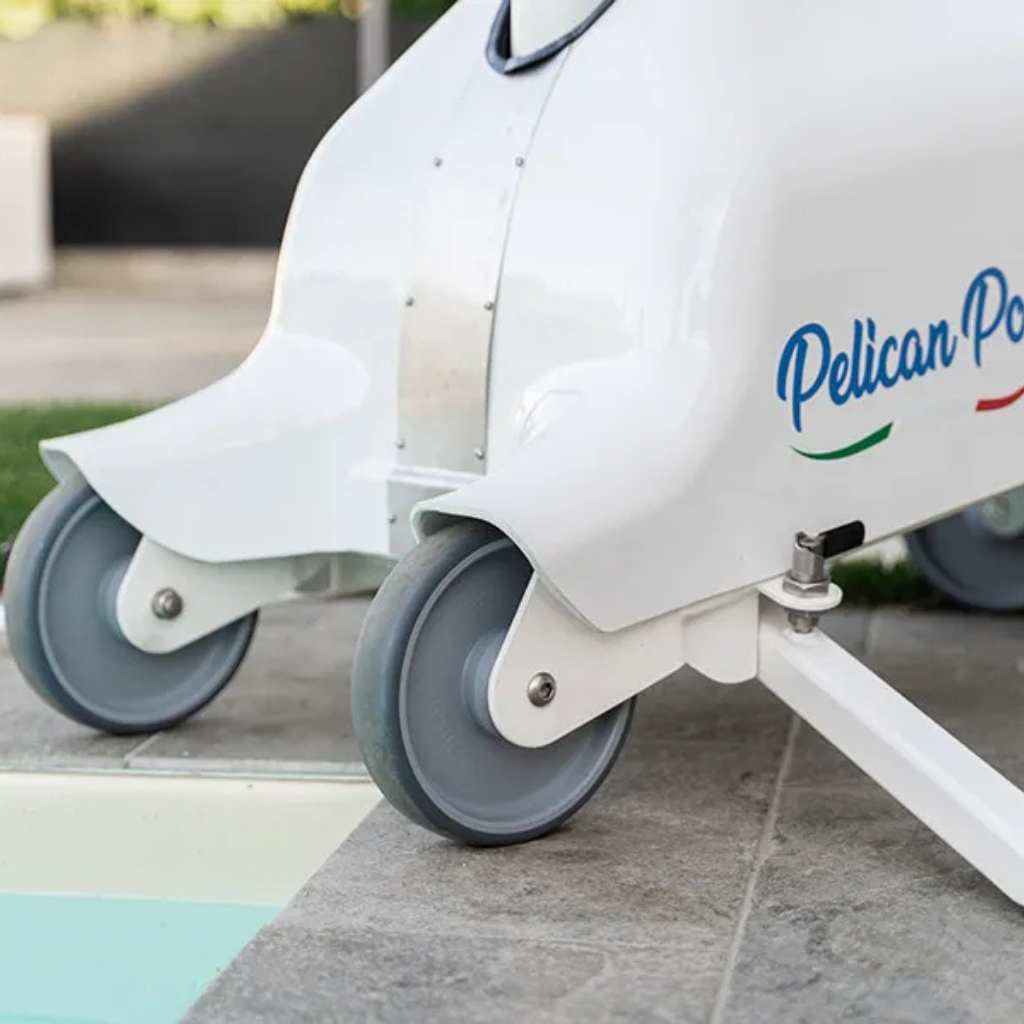

- Pivoting rear wheels with brake

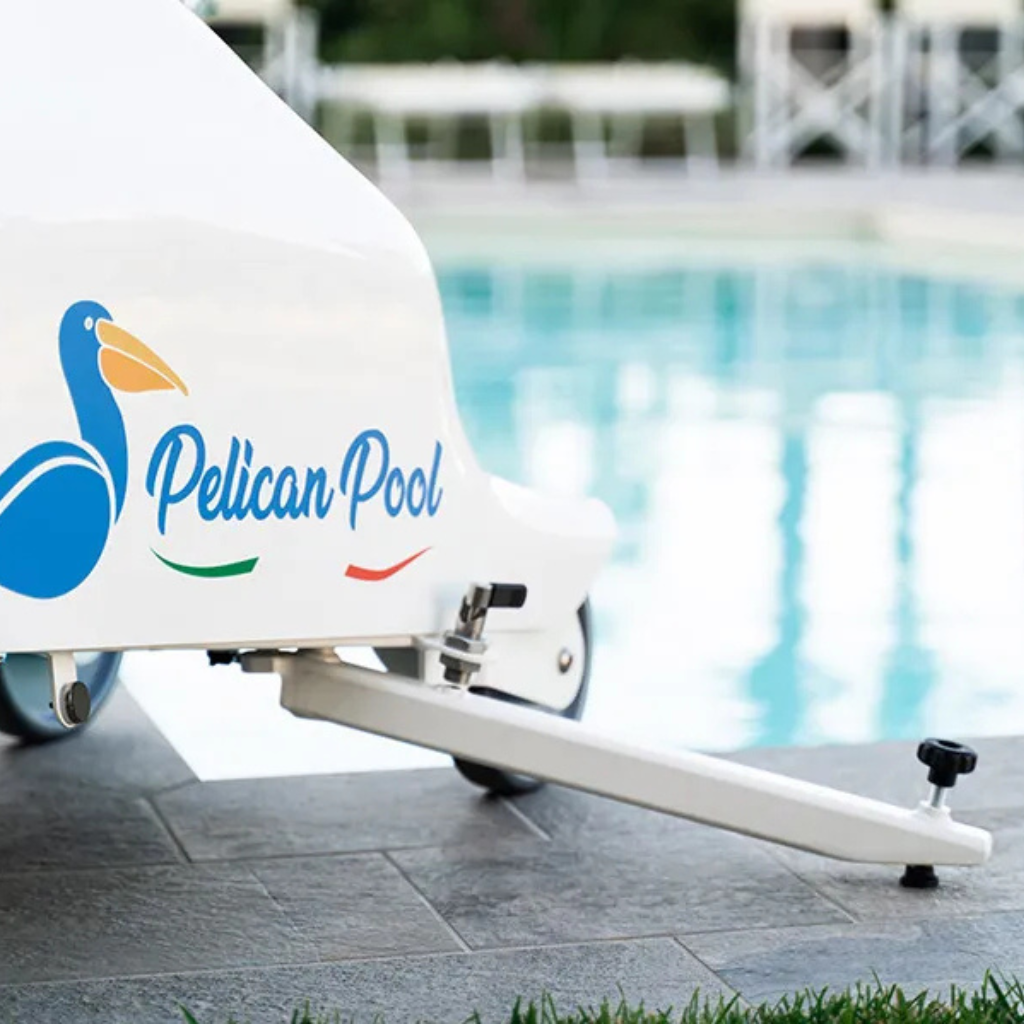

- Side stabilisers with safety sensors
- End-stroke sensors for seat rotation
- Emergency stop button
- Removable battery with external charger
Structure & Comfort
- Adjustable armrests
- Retractable leg support
- Folding compact seat
- Headrest included
- Stainless steel structure for parts in contact with water
- Galvanized and powder-coated steel frame
Optional Accessories
- 4-point safety belt
- 5-point safety belt
- Protective cover
Certifications & Compliance
- EU Regulation 2017/745 – Medical Devices (Class I)
- Machinery Directive 2006/42/EC
- EMC Directive 2004/108/EC
- CE marked
